The List of Files You’ll Have to Send to Your PCB Manufacturer

in Ordering on

Here at Avanti Circuits, we want to ensure you receive your printed circuit boards as quickly as possible. You can help us to do this by sending us all the files we need. However, you might not know what files we need.


You will need to send us the following files:

  • Board outline
  • Bottom copper
  • Bottom silkscreen
  • Bottom solder mask
  • Fab drawing
  • Inner layers
  • NC drill
  • Top copper
  • Top silkscreen
  • Top solder mask

Please note, all of the files we require ultimately depend on your PCB’s design. A single-sided PCB, for example, that has no solder mask won’t need as many files. However, a multilayer PCB will need a few more. Please don’t include any files than you really need to.

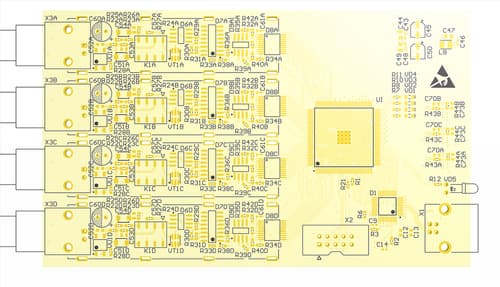

Drawings such as these can be very helpful if there’s not enough room for all of the reference designators. You can send the assembly drawings as a PDF file.


These particular files contain information about every layer of your PCB. You should also include a drill file so we know where to place the drill holes and how large they need to be. Please make sure you always include all of your drill files. This will ensure we do not miss any of your requirements.


Also known as a “Xy coordinate file” or a “Pick and place file”, Centroid files contain information about where all of the components need to be placed. This information includes the:

  • Layer
  • Reference designator
  • Rotation
  • Value/package
  • X-Y position


If you have yet to finalize your design we might be able to generate a quote based upon your Gerber files. Alternatively, we could use a detailed description. Once your design has been finalized, all of your updated files will be reviewed and modified should they need to be.


Bill of Materials

This is a list of all of the parts that are to be populated on your PCB. The Bill of Materials should include the:

  • Quantity
  • Manufacturer
  • Mfg Part number
  • Description
  • Package
  • Type
  • Any additional instructions


All of your files will be viewed from the top down. What this means is the top layers will be right reading whereas the bottom layers will be mirrored. If you have inner layer planes, the image is likely to be a negative image. When it comes to inner layer signal layers, the images are usually positive.
